For 1/10 Rc Car

Product Description

Features:
4 Poles 12 slots high-torque motor design, suitable for 1/10 1/12 scale RC car.
High-purity copper windings maximize efficiency.
Precision engineered for maximum energy conversion.
Precision balanced rotor, smoothness for best reliability, and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can. ESC has enhanced throttle response, excellent acceleration, powerful interruptions, and super smooth and accurate throttle linearity.

How To Use:
Connect BEC wires with the receiver
Connect motor wires with ESC
Turn on the transmitter
Connect the battery pack with ESC then switch on the ESC.
When the connection of the motor and battery is finished, the motor emitsnBeep-Beepntone.
When the throttle stick is in the neutral position, the motor re-emits nBeep-Beepntone.
The ESC is workable.

Specifications:

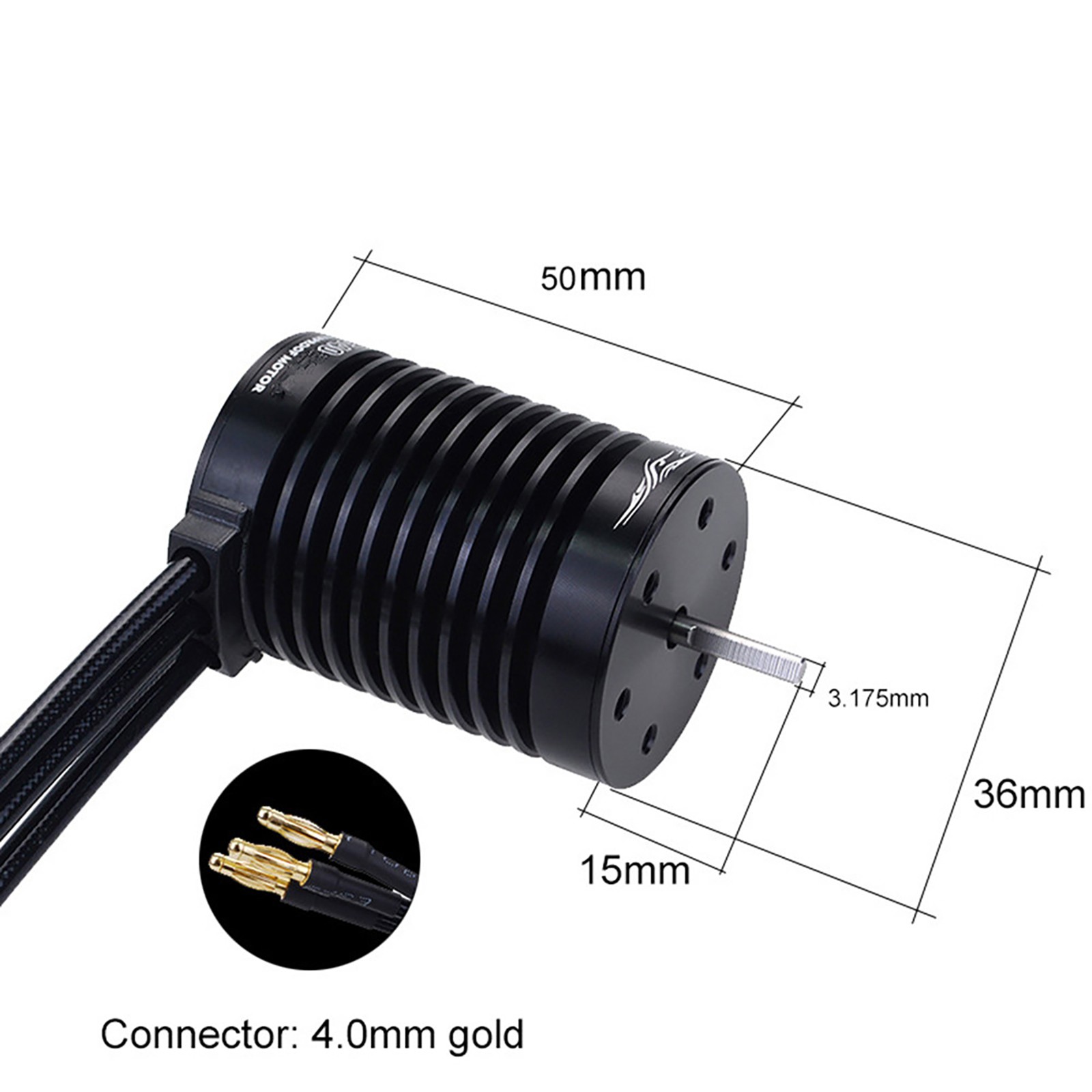

F540 Motor
Color: Black
Power: 800W
Max RPM: 50000
Material: Aluminum
Length: 50mm
Diameter: 36mm
Shaft Length: 15mm
Shaft Diameter: 3.175mm
KV(RPM/V): 4370KV
Voltage: <12V(4370KV)
Current: 66A(4370KV)

60A ESC
Material: Aluminum
Continue Current: 60A
Burst Current: 360A
BEC Output: 5.8V/3A
Power Supply Plugs: T plug male
Battery: 2-3S Li-Po/4-9S Ni-Mh Ni-Cd
Motor Plugs: 4mm banana plug female
Plug Type: 4mm gold-plated banana plug

Note:
When the connection is completed, if the ESC keeps beeping, there are 2 solutions
1. Rebinding the controller and its receiver
2. Re just the neutral position of the controller throttle. This Motor & ESC combo will get better performance on a 2S lipo battery. We do not recommend using the 3S battery in case of security issues.

Package Includes:
1 x F540 4370KV Motor
1 x Waterproof 60A Brushless ESC
